SHV Grill


CATALOG

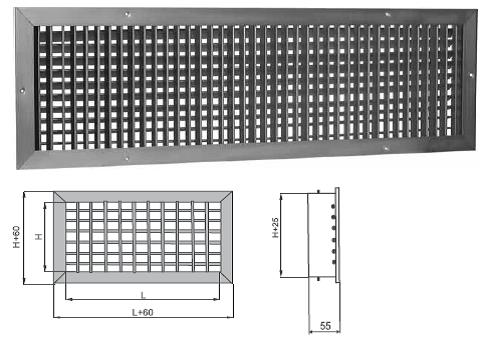

SHV Grill

Size: 120cm by 30cm

Classification

SHV - ventilation grilles with two rows of lamellae: the first row - horizontal lamellae, parallel to the length of the grill; the second row - vertical lamellae, parallel to the height of the grill. SVH - ventilation grilles with two rows of lamellae: the first row - vertical lamellae, parallel to the height of the grill; the second row - horizontal lamellae, parallel to the length of the grill.

Appointment

Supply horizontal-vertical (SHV) ventilation grilles and supply vertical-horizontal (SVH) ventilation grilles are designed for use in air conditioning, ventilation and heating systems. SHV and SVH grilles are installed in walls or in false ceilings. The angle of deflection of the movable lamellas can be changed, so that the direction of the air flow is regulated.

MAterial

SHV and SVH grilles are made of anodized aluminum profile.

Decoration

Grill color: anodized aluminum. At the request of the customer, it is possible to paint in any color in the RAL catalog..
