Technical description of the remote control DEI 758

Control system for a group of fan air-handling compartments (fan coil units, small air-handling units), united in a group control scheme with the possibility of dispatching.

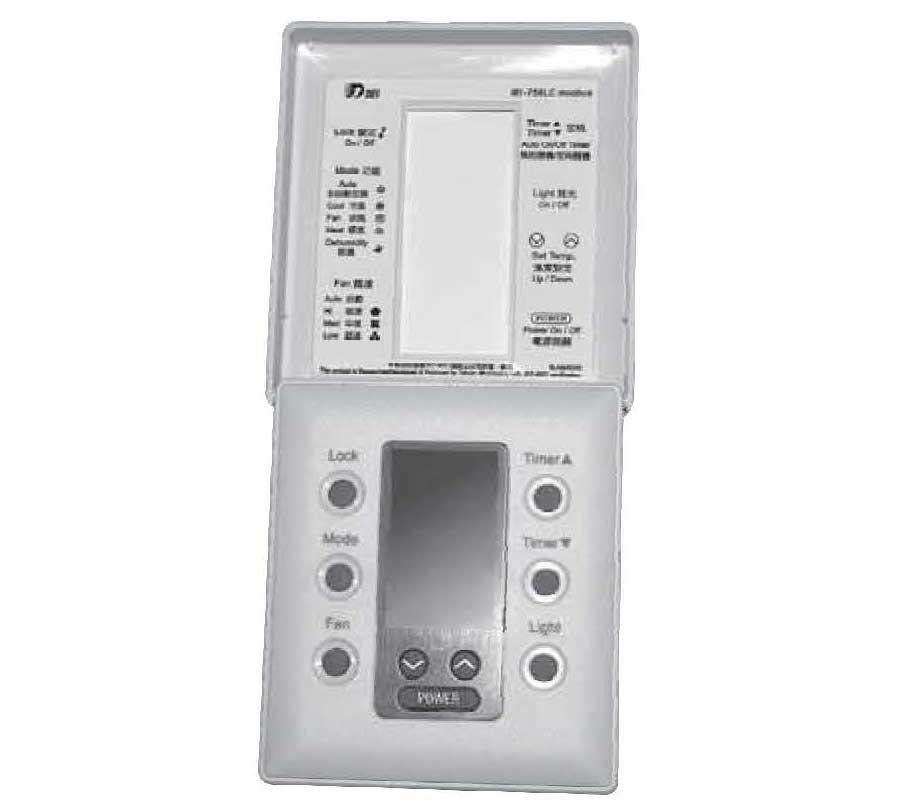

Remote control DEI 758 LC

Individual control panel for the fan air-handling compartment (fan coil, small air-handling unit), working in conjunction with the power control unit DEI 758PN.

Remote control DEI 758 LCN

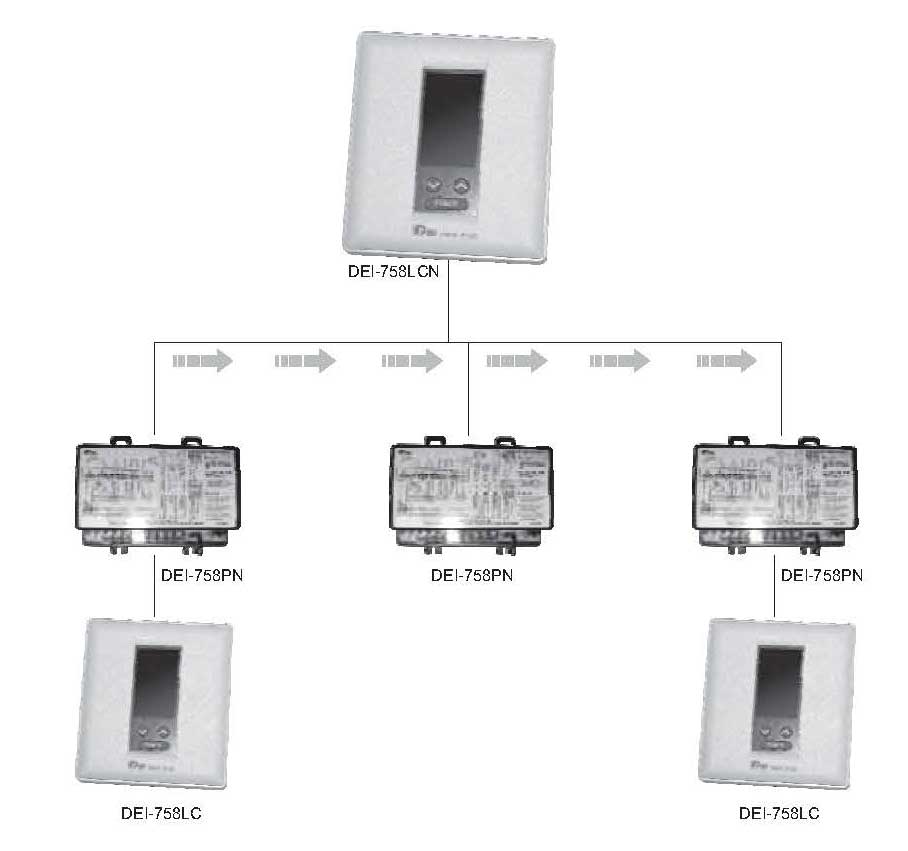

Group control panel for fan air-handling compartments (fan coil units, small air-handling units) with individual control packages: DEI 758LC + DEI 758PN. The maximum number of sets DEI 758 LC - PN, under the control of DEI 758 LCN - 63.

Application area

The proposed control system allows for the coordinated control of a group of fan air-handling compartments (fan coil units, small air-handling units) with the number up to 63 units. С единого диспетчерского (управляющего узла DEI 758 LCN). At the same time, each device is individually controlled by DEI 758LC + DEI 758PN set directly in the treated rooms.. The control package DEI 758 LC + DEI 758 PN allows to control the air handling fan compartment (fan coil, small air handling unit) with the first heating section and the first cooling section (four-pipe coolant supply system).

Functions

 DEI 758LC + DEI 758PN

• - Switching on (switching off) the air handling compartment directly from the control panel, through the power control unit installed on the compartmentDEI 758 PN;

• - Maintaining room air temperature in heating or cooling mode using the built-in temperature sensor.

• - Control of two-, three-way valves on the supply lines of the coolant of the four-pipe system).

• - Manual and automatic control of the fan speed of the air-handling compartment (high speed, medium, low, automatic).

• - The function of automatic switching on and off of the air-handling compartment according to the time schedule.

• - Non-volatile memory (saving the values of modes and settings installed before power is cut off).

• - Active illumination of the display screen for operating modes.

Technical specifications

• - Supply voltage ~АС230/115В ± 10% 50/60 Hz.

• - Scope of delivery: remote controller RC-L1; Signal receiver with indication; Power supply and control unit; Communication cable L = 3m.

• -Inputs - temperature sensor (air temperature control).

• - Outputs:

  • - Relay (control of two-, three-way valves)1А/250В АС~.

  • - Relay (fan speed control) 3 х 1А/250В АС~.

  • - Relay (remote control air cooling system 1А/250В АС~.

• - Temperature settings:

  • - Heat16С - 32С; Accuracy ± 0,5 С.

  • - Cold16С - 30С; Accuracy ± 0,5 С.

• - Temperature indication range is 5С - 45С. Step 1C.

• - The maximum distance - the receiver-receiver of signals ~ 30 m (DEI 737 C).
